NEW QUESTION 19
Refer to exhibit.

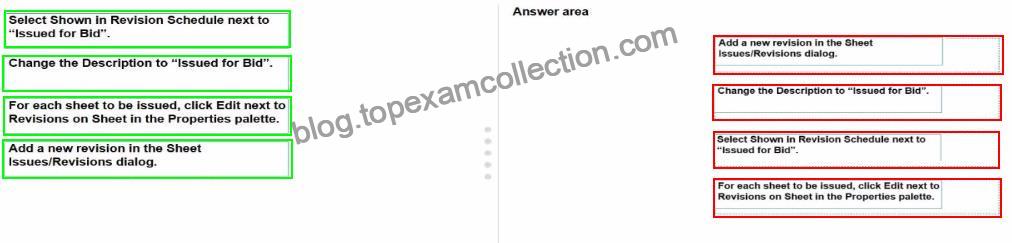

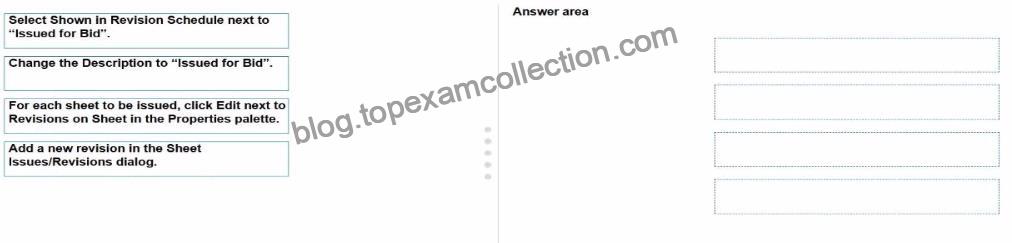

An electrical designer is issuing several sheets and wants ‘Issued for Bid” to appear in the revision schedule of the title block. Drag and drop into the correct order to indicate how this can be accomplished to only the sheets that are being issued.

NEW QUESTION 20
An electrical designer is working on a project with multiple buildings. The designer wants to organize the Project Browser by building For example, all views related to Building A will be sorted under Building A. and all views related to Building B will be sorted under Building B.
The designer decides to create a new parameter, assign it to views, and then sort the Project Browser according to the new parameter.
Which parameter should the designer use?

A reporting parameter

A global parameter

A project parameter

A family parameter

NEW QUESTION 21
Refer to exhibit.

A family in a project contains the following types:
The following edits are made in the Family Editor and loaded into the project:
1. The type Plain is renamed to Standard
2 A new type is added named GFCI
Which types does this family now have in the project?
1. The type Plain is renamed to Standard

Above Counter. Plain. Standard

Above Counter. GFCI. Standard

Above Counter. GFCI. Plain. Standard

Above Counter. Standard

NEW QUESTION 22
Refer to exhibit.

An electrical designer is reviewing the Type Properties for a floor plan view. How will the view behove when creating a new floor plan?

The Electrical Plan view template will be assigned to a new floor plan view created with the Floor Plan tool with the Floor Plan type selected

Creating a new floor plan view using the Floor Plan tool with the Floor Plan type selected will create a new Electrical Plan view template.

When duplicating a floor plan view of any type, the Electrical Plan view template will be assigned to the new floor plan view.

A new floor plan view created by duplicating a floor plan view of the Floor Plan type will be duplicated as a dependent view.

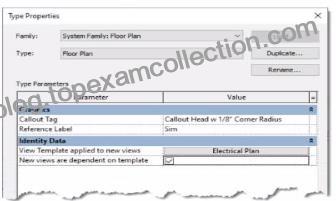

The exhibit shown displays the Type Properties dialog box for a System Family: Floor Plan view type. Within the “Identity Data” group, there are two critical parameters that govern the behavior of new views created from this view type:
“View Template applied to new views”
“New views are dependent on template”
According to Autodesk Revit’s documentation in the Revit MEP User’s Guide (Chapter 48 “Views and View Templates” and Chapter 49 “Preparing Construction Documents”):
“When a view template is assigned to a view type through the Type Properties dialog, any new view created from that view type automatically receives the defined view template. This ensures consistent visibility, graphics, and discipline settings for all new views.” In this image, the parameter “View Template applied to new views” is set to Electrical Plan, and “New views are dependent on template” is checked. This means that any new floor plan created using this type will automatically have the Electrical Plan template applied, and the view will be dependent on that template, meaning it inherits all its visibility and annotation control settings.
This ensures that all electrical floor plan views generated are standardized and visually consistent, a fundamental practice in Revit Electrical Design workflows, as described in the Smithsonian Facilities Revit Template User’s Guide:
“Assigning a default view template to a view type (e.g., Electrical Plan) ensures every new view created follows organizational and graphical standards without manual setup.” Option A matches this behavior exactly.
Option B is incorrect** because Revit does not create a new template automatically.
Option C is incorrect** because duplication of an existing view does not reassign templates by type.
Option D is incorrect** because dependent view creation requires a specific “Duplicate as Dependent” command, not this setting.
References:
Autodesk Revit MEP User’s Guide – Chapter 48 “Views and View Templates,” pp. 1112-1115 Smithsonian Facilities Revit Template User’s Guide – Section 2.8.1 “View Types and View Templates,” p. 30 Autodesk Revit Electrical Design Essentials – View Template Application and Management Section

NEW QUESTION 23
Which condition applies when placing a colling-hosted light fixture?

The light must be snapped to the celling using nodes.

The light must be hosted to the celling reference plane.

The light must be defined in the ceiling layout pattern.

The light must be placed in the same model as the ceiling

According to Autodesk’s Revit MEP User’s Guide (Revit MEP 2011, Chapter 17 “Electrical Systems”), lighting fixtures in Revit are hosted components-this means they rely on another model element (like a wall, ceiling, or floor) to exist. Specifically, ceiling-hosted lighting fixtures must be placed on a ceiling element that is within the same model file in which the light is being placed.
From the document:
“Most lighting fixtures are hosted components that must be placed on a host component (a ceiling or wall). To place a lighting fixture in a view:
In the Project Browser, expand Views (all) ➤ Floor Plans, and double-click the view where you want to place the lighting fixture.
Click Home tab ➤ Electrical panel ➤ Lighting Fixture.
In the Type Selector, select a fixture type.
On the ribbon, verify that Tag on Placement is selected to automatically tag the fixture.
Move the cursor over the drawing area.
The lighting fixture is previewed as you move the cursor over a valid host or location in the drawing area.
Click to place the lighting fixture.”
– Revit MEP User’s Guide, Chapter 17: Electrical Systems, p. 402
Additionally, in the Rendering section of the same guide, Autodesk clearly defines hosting relationships in lighting fixture templates:
“The names of all lighting fixture templates include the words Lighting Fixture. Be sure to select the appropriate template for the type of lighting fixture that you want to create. For example, to create a ceiling-based fixture for metric projects, use Metric Lighting Fixture ceiling based.rft.
Revit MEP opens the Family Editor. The template defines reference planes and a light source. For ceiling-based and wall-based fixtures, the template includes a ceiling or wall to host the fixture.”
– Revit MEP User’s Guide, Chapter 50: Rendering, p. 1148
This indicates that the ceiling host must physically exist within the same model environment. If the ceiling is part of a linked architectural model, the lighting fixture cannot attach to it directly because Revit does not allow cross-model hosting. In such cases, a work plane-based or face-based light family must be used instead.
Therefore, among the given options:
A (snapping using nodes) and B (hosted to a ceiling reference plane) are partial actions within a placement workflow, not hosting conditions.
C (defined in the ceiling layout pattern) is incorrect because pattern layout does not determine hosting.
D (placed in the same model as the ceiling) is correct since Revit requires the ceiling host and the light fixture to exist in the same project file for the hosting relationship to function.
Verified Reference Extracts from Revit for Electrical Design Documentation:
Autodesk Revit MEP User’s Guide (2011), Chapter 17: Electrical Systems, p. 402 – “Most lighting fixtures are hosted components that must be placed on a host component (a ceiling or wall).” Autodesk Revit MEP User’s Guide (2011), Chapter 50: Rendering, p. 1148 – “For ceiling-based and wall-based fixtures, the template includes a ceiling or wall to host the fixture.” Revit MEP Family Templates Description – Metric Lighting Fixture ceiling based.rft defines the ceiling as the hosting reference within the same model environment.

NEW QUESTION 24
Refer to exhibit.
(The Image is presented in Imperial units: 1 In = 25 mm [Metric units rounded).)

What is the electrical designer trying to do as shown in the exhibit?

Add Cable Tray

Place Parallel Conduits

Array Conduit

Place Multiple Pipe

The exhibit shown in the image is taken directly from the Revit MEP Electrical Systems workspace, specifically from the Parallel Conduits command interface. This dialog box appears when the designer activates the Place Parallel Conduits tool in the Systems tab → Electrical panel → Conduit dropdown → Parallel Conduits.
In this interface, the designer can specify:
Horizontal Number / Offset – defines how many conduits will be created horizontally and their spacing.
Vertical Number / Offset – defines how many conduits will be created vertically and their spacing.
Bend Radius Options:
Same Bend Radius – all conduits use identical bend radii.
Concentric Bend Radius – conduits bend concentrically around a common center point.
According to Autodesk’s Revit MEP 2011 User’s Guide (Chapter 18, Electrical Systems – Conduit Layout):
“The Parallel Conduits tool allows you to create multiple conduits side-by-side at the same time.
You can specify the number of conduits horizontally and vertically, as well as the offset between them.
You can also define whether bends have the same bend radius or concentric bend radii.”
– Revit MEP User’s Guide, Electrical Systems, Section: Conduit Layout
This tool is used when electrical designers need to route groups of conduits that run in parallel-such as power and data conduits running between panels or equipment racks.
The Concentric Bend Radius option (as shown in the exhibit) ensures all conduit bends share a common center, which is critical for maintaining uniformity in conduit sweeps and avoiding clashes during coordination.
Therefore:
A . Add Cable Tray – incorrect; the cable tray tool is separate and does not use bend radius options.
C . Array Conduit – incorrect; arraying is a different geometric function not specific to conduit routing.
D . Place Multiple Pipe – incorrect; applies to mechanical piping systems, not electrical conduits.
The display of Concentric Bend Radius, Horizontal Number, Vertical Number, and Offset confirms that the designer is using the Parallel Conduit placement tool.
Verified Reference Extracts from Revit Electrical Design Documentation:
Autodesk Revit MEP User’s Guide (2011) – Electrical Systems → Conduit Layout → “Parallel Conduits Tool” description.
Autodesk Revit MEP Training Curriculum – Electrical Module, Exercise 6.3 “Placing Parallel Conduits,” which illustrates the same interface for bend radius configuration.

NEW QUESTION 25
Refer to exhibit.

An electrical designer wants to place electrical equipment on the pad.
How should the component be aligned to the pad before placement?

Start the Align tool. tab to select the object edge, and then select the equipment edge.

Start the Align tool and select the edges to be aligned.

Place the cursor over an edge of the object and then press Spacebar.

Place the cursor anywhere over the object and then press Spacebar.

NEW QUESTION 26
An electrical designer is routing conduit through a building model to coordinate with other disciplines, the electrical designer wants to view selected components in a cropped 3D view.
With the conduit components selected, which tool should the designer use?

Selection Box

Default 3D View

Scope Box

Section Box

NEW QUESTION 27
An electrical designer needs to add spaces to a model displaying the architectural room name and number. What should the designer do before creating the spaces?

Select Room Bounding from the architectural link’s type properties.

Select Save Positions for the architectural links in the Manage Links dialog.

Use Transfer Project Standards to Import rooms from the architectural model.

Change the architectural model display settings to By Host View,

NEW QUESTION 28
An electrical designer has noticed lighting fixtures present in an architectural linked model. Which tool should be used to place an instance of those fixtures in the current electrical model while maintaining the position from the architectural model?

Copy/Monitor

Coordination Review

Reconcile Hosting

Reload Latest

NEW QUESTION 29
Refer to exhibits.

(The image Is presented in Imperial units: 1 In = 25 mm (Metric units rounded].) An electrical designer creates a lighting fixture family with the following types and then saves the family.

4

1

6

2

NEW QUESTION 30
An electrical designer is creating an electrical fixture family for a receptacle. The designer nests a generic annotation family that contains the receptacle symbol and a label What must be done in the electrical fixture family so that the label value can be changed in a project?

Create a label and use a formula to set it equal to the generic annotation label.

Associate the nested family’s parameter to a parameter in the electrical fixture family.

In the Visibility Settings for the nested generic annotation, select Label.

Enable Shared in the generic annotation family and re-load it into the fixture family.

NEW QUESTION 31
Refer to exhibit.

In this linked architectural model, demolished walls are missing The electrical designer teams from the architect that the walls have been placed in a phase that does not exist in the host model.
Which steps should the designer lake to associate the architectural phases to their phases?

Open Manage Links > Manage Phases

Select the link > Edit Type > Phase Mapping

Select Phases > Graphic Overrides

Open Visibility Graphics > Revit Links > Display Settings

In Autodesk Revit, when demolished walls or other elements from a linked architectural model are missing in the host model, the issue typically lies in phase inconsistency between the host and linked models. The architectural model may include elements created or demolished in phases that do not exist or are mismatched in the electrical model (the host). To resolve this, Revit allows users to map phases between the host and linked models through the Phase Mapping tool in the link’s Type Properties dialog.
According to the Autodesk Revit MEP Electrical Design Guide (Linked Models Section, pp. 1282-1287), the official procedure is:
“You can manually set up a correspondence between phases in the host model and phases in the linked model. To do this, you set up a phase map in the properties of the linked model, and then apply the phase map in the host model.” (Revit MEP User’s Guide, Chapter 53 – Linked Models, p. 1282) The step-by-step process is precisely described in the Revit documentation as follows:
To map phases in the linked model:
In the drawing area of the host model, select the linked Revit model.
Click Modify | RVT Links tab ➤ Properties panel ➤ Type Properties.
In the Type Properties dialog, find the Phase Mapping parameter and click Edit.
In the Phases dialog, select the appropriate mapping options for each phase, and click OK.
Click OK to exit the Type Properties dialog.
(Revit MEP User’s Guide, p. 1287)
This procedure ensures that demolished or existing architectural elements display correctly according to the electrical model’s phase structure. Without this mapping, Revit cannot interpret which linked phase corresponds to the host’s “Existing” or “New Construction” phases, causing certain geometry-like demolished walls-to disappear from view.
Supporting Extracts from Revit for Electrical Design Study Documentation:
Linked Model Type Properties:
“To modify the type properties of a linked model, select the linked model in the drawing area, and click Modify | RVT Links tab ➤ Properties panel ➤ (Type Properties).
The Phase Mapping parameter allows you to set up a correspondence between phases in the host model and phases in the linked model.” (Revit MEP 2011 User’s Guide, p. 1305) Phases and Linked Models Concept:
“When you link a Revit model that has more than one phase, phases in the host model automatically map to phases in the linked model. When this initial mapping occurs, Revit maps phases by matching phase names.
You can manually set up a correspondence between phases in the host model and phases in the linked model using the Phase Mapping function.” (Revit MEP 2011 User’s Guide, p. 1282) Phase-Specific Room and Element Display:
“If phase-specific elements in a linked model do not reflect correctly, check phase mapping for the linked model. If automatic mapping does not give the desired result, map phases manually between projects.” (Revit MEP 2011 User’s Guide, p. 710) Conclusion:
Therefore, to fix the issue where demolished walls are missing in a linked architectural model, the electrical designer must perform manual phase mapping between the architectural model and the host electrical model. This is done by selecting the linked file, opening its Type Properties, and editing the Phase Mapping parameter.

NEW QUESTION 32
Which Revit command is used to map a Keynote Table file?

Keynote Manager

Element Keynote

Keynote Legend

Keynoting Settings

NEW QUESTION 33
Refer to exhibit.

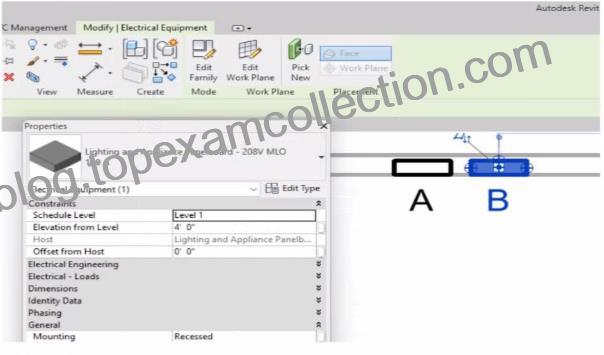

An electrical designer has accidentally hosted Panel B to Panel A. Select two ways the designer can correct hosting. (Select two.)

Use the Pick New command in the Work Plane panel.

Edit the Mounting value in the Properties palette.

Use the Move command.

Edit the Host value in the Properties palette.

Use the Edit Work Plane command

In Autodesk Revit’s Electrical discipline, when electrical components such as panelboards are hosted incorrectly (for example, Panel B hosted to Panel A instead of a wall or level), the hosting relationship must be corrected by reassigning the work plane or host. This is essential because hosted electrical elements depend on the geometry or level of their host for placement, alignment, and coordination.
According to the Revit MEP User’s Guide (Chapter 45 “Work Planes and Element Hosting”):
“If a hosted element is placed incorrectly or the host has changed, use the Edit Work Plane or Pick New commands to redefine its host or work plane.” Here’s how these two tools apply:
Pick New (Option A)
Located under the Work Plane panel on the Modify tab, this command allows you to select a new face or host (e.g., a wall, ceiling, or floor) for the existing component. It effectively reassigns the element’s host without deleting or recreating the element.
“Use Pick New to specify a different face or surface as the host for a component that was incorrectly placed.”
Edit Work Plane (Option E)
This command lets the designer redefine the reference level or named work plane to which an element is associated. For hosted electrical equipment (like lighting or panels), this ensures the object references the correct structural or architectural surface.
“To correct hosting errors, open Edit Work Plane from the Modify tab, and assign a new named plane, level, or face.” Incorrect Options Explanation:
B . Edit Mounting value – changes only how the panel is mounted (e.g., recessed or surface), not the host itself.
C . Move command – repositions the element but does not change the hosting relationship.
D . Edit Host value – the “Host” parameter is read-only; it cannot be edited directly.
Thus, the correct methods to rehost Panel B from Panel A to the correct wall or work plane are through Pick New and Edit Work Plane, ensuring proper association and maintaining system connectivity.
References:
Autodesk Revit MEP User’s Guide – Chapter 45 “Work Planes and Hosting,” pp. 1068-1072 Smithsonian Facilities Revit Template User’s Guide – Section 6.2.3 “Complex Geometry and Multiple Parametric Relationships,” p. 57 Autodesk Revit Electrical Design Essentials – “Rehosting Electrical Equipment and Devices”

NEW QUESTION 34
Elements are added to a design option. The electrical designer needs an additional design option in the option set. All of the same elements are needed in both design options Which two methods will duplicate the element for the new design option? (Select two.)

Open two views side by side and drag and drop from one view to another.

Open the new design option and pick Reveal Hidden to select the items to copy.

In the Design Options dialog, pick the original design option and select Duplicate.

Use Copy to Clipboard and Paste > Aligned to Current View in the new design option.

Select the items and use Add to Set.

In Autodesk Revit, Design Options are used to explore multiple design alternatives within the same project environment. This feature is often employed by electrical designers to model different lighting layouts, circuiting approaches, or equipment placements without duplicating the entire project.
When an additional design option is created within the same option set, and the designer needs to include all the same elements that already exist in another design option, Revit offers two effective ways to duplicate these elements while preserving their type, parameters, and host relationships.
According to the Autodesk Revit MEP User’s Guide (Chapter: Working with Design Options), it clearly describes:
“To create a copy of an existing design option within an option set, open the Design Options dialog box, select the desired option, and click Duplicate. This creates a new option containing identical elements and maintains their relationships and constraints.” This confirms Option C as correct because duplicating an option from the Design Options dialog automatically replicates all its elements into the new design option within the same option set.
Furthermore, the guide continues:
“Alternatively, when working with a specific design option view, you can use the Copy to Clipboard and Paste Aligned > Aligned to Current View commands to duplicate selected elements into another active design option. These elements are placed in the same location and remain associated with the new design option.” This validates Option D as the second correct method, allowing manual duplication of elements between options while keeping spatial alignment intact.
Other options listed are incorrect for the following reasons:
A (Drag and Drop) is not supported between design options; it only works between views in the same option.
B (Reveal Hidden) only displays hidden elements; it doesn’t expose design option geometry for copying.
E (Add to Set) transfers elements into the same design option set, not between individual design options.
Therefore, the two valid and Autodesk-confirmed methods to duplicate all elements between design options are:
C). Duplicate from Design Options dialog, and D. Copy/Paste Aligned to Current View.
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 13: Working with Design Options, pp. 364-367.
Autodesk Revit Architecture 2020 Help, “Duplicating Design Options and Copying Elements Between Options.” Smithsonian Facilities Revit Template User’s Guide (2021), Section 6.3.2: Managing Design Options in Coordination Views.

NEW QUESTION 35
Refer to exhibit.

An electrical designer tries to place a generic annotation family in a data device family. The designer receives the error message as shown. What should the designer do?

Change the Detail Level to Coarse.

Edit the generic annotation family and set it to Shared.

Set the view to the Ref. Level.

Select the Maintain Annotation Orientation parameter checkbox

NEW QUESTION 36
A project has 24 branch panel schedules that all need the same formatting changes. What should the electrical designer do?

Use the Manage Templates command to edit and apply the template changes to all panel schedules.

Select all panel schedules in the Project Browser, right-click and choose Apply Template Properties, and select the desired template.

Assign the desired view template to the panel schedules in the Properties panel.

Edit a panel schedule, right-click and choose Duplicate View, and duplicate changes lo desired panel schedules.

NEW QUESTION 37
Refer to the exhibit.

Project Browser > Conduits > Conduits with Fittings > Single Line Symbology

Properties > Edit Type > Single Line Symbology

Object Styles > Conduits > Rise/Drop > Single Line Symbology

Electrical Settings > Conduit Settings > Rise Drop > Single Line Symbology

NEW QUESTION 38
When creating a power circuit, which two rules are enforced by the program? (Select two.)

Items on the circuit must be in the same model.

Items on the circuit must have an apparent load value assigned.

Items on the circuit must be assigned the same voltage definition

Items on the circuit must be in the same workset.

Items on the circuit must be associated with a transformer.

According to the Autodesk Revit MEP User’s Guide (Chapter 17 – Electrical Systems), when creating power and lighting circuits, Revit enforces specific compatibility rules to ensure the accuracy and integrity of electrical systems. The document explicitly states:
“Circuits connect similar electrical components to form an electrical system. Once created, you can edit circuits to add or remove components, connect a circuit to a panel, add wiring runs, and view circuit and panel properties… A component can be connected in a circuit if it is compatible with the other components in the circuit and if it has an available connector.” Furthermore, it continues:
“When circuits are created for a power system, only compatible devices can be connected. All devices in a circuit must specify the same distribution system (voltage and number of poles). The distribution system can be specified by type parameters or instance parameters. When you create a circuit where all the devices have the distribution system specified as instance parameters, Revit MEP displays a Specify Circuit Information dialog where you can specify values for the number of poles and voltage prior to creating the circuit.” Additionally, the documentation clarifies that circuits must exist within the same project model to maintain system logic and consistency. It explains that “circuits connect similar electrical components within a particular system,” which implicitly enforces that items must reside in the same model file. Revit’s data structure does not allow cross-model circuit connections, since circuit logic, load calculations, and panel assignments depend on shared model parameters and hosted relationships between electrical families.
Therefore, the two rules enforced by Revit when creating a power circuit are:
A). Items on the circuit must be in the same model.
This ensures data integrity and consistency across electrical systems, as circuits cannot span multiple linked models.
C). Items on the circuit must be assigned the same voltage definition.
This guarantees that only devices with matching voltage and pole configurations can be logically and electrically connected to the same circuit.
Other options, such as requiring apparent load values or association with transformers, are not mandatory for circuit creation-they are design considerations applied after circuits are established. Worksets (option D) manage collaboration, not circuit validity.
Verified Reference:
Autodesk Revit MEP 2011 User’s Guide, Chapter 17 “Electrical Systems,” Sections Creating Circuits and Creating Power and Lighting Circuits, pp. 461-463.

NEW QUESTION 39
Refer to exhibit.
(The image is presented in Imperial units: 1 In = 25 mm (Metric units rounded).)

In the space properties for the space, the Lighting Calculation Luminaire Plane is Not Computed. What is causing this issue?
