On an Aruba AP, a solid amber radio status LED indicates: A. Not enough PoE is provided from the switch to power both radios of the AP When the radio status LED on an Aruba AP shows a solid amber color, it typically signifies that the PoE (Power over Ethernet) supplied by the switch is insufficient to power both radios of the AP (usually the
2.4 GHz and 5 GHz bands). This may require checking the PoE budget of the switch or using a higher- powered PoE source.
Other options, such as the radio working in mesh mode, operating only in the 5 GHz band, or being enabled in monitor or spectrum analysis mode, typically do not result in the LED showing a solid amber color.

The ideal access switch for a large hospital with distribution racks of over 400 ports in a single VSF stack is the CX 6300. This switch provides the following benefits:
The CX 6300 supports up to 48 ports per switch and up to 10 switches per VSF stack, allowing for a total of 480 ports in a single stack. This meets the requirement of having over 400 ports in a single VSF stack.
The CX 6300 supports high-performance switching with up to 960 Gbps of switching capacity and up to 714 Mpps of forwarding rate. This meets the requirement of having high throughput and low latency for mobile equipment and patient data.
The CX 6300 supports advanced features such as dynamic segmentation, policy-based routing, and role-based access control. These features enhance the security and flexibility of the network by applying different policies and roles to different types of devices and users.
The CX 6300 supports Aruba NetEdit, a network configuration and orchestration tool that simplifies the management and automation of the network. This reduces the complexity and human errors involved in network configuration and maintenance.
The other options are not ideal because:
OCX 6400: This switch is designed for data center applications and does not support VSF stacking. It also does not support dynamic segmentation or policy-based routing, which are useful for network security and flexibility.
OCX 6200: This switch is designed for small to medium-sized businesses and does not support VSF stacking. It also has lower switching capacity and forwarding rate than the CX 6300, which may affect the performance of the network.
OCX 6100: This switch is designed for edge applications and does not support VSF stacking. It also has lower switching capacity and forwarding rate than the CX 6300, which may affect the performance of the network.

The best technology to use for dropping excessive broadcast traffic on ingress to an ArubaOS-CX switch is rate limiting. Rate limiting is a feature that allows network administrators to control the amount of traffic that enters or leaves a port or a VLAN on a switch by setting bandwidth thresholds or limits. Rate limiting can be used to prevent network congestion, improve network performance, enforce service level agreements(SLAs), or mitigate denial-of-service (DoS) attacks. Rate limiting can be applied to broadcast traffic on ingress to an ArubaOS-CX switch by using the storm-control command in interface configuration mode. This command allows network administrators to specify the percentage of bandwidth or packets per second that can be used by broadcast traffic on an ingress port. If the broadcast traffic exceeds the specified threshold, the switch will drop the excess packets.
The other options are not technologies for dropping excessive broadcast traffic on ingress because:
– DWRR queuing: DWRR stands for Deficit Weighted Round Robin, which is a queuing algorithm that assigns different weights or priorities to different traffic classes or queues on an egress port. DWRR ensures that each queue gets its fair share of bandwidth based on its weight while avoiding starvation of lower priority queues. DWRR does not drop excessive broadcast traffic on ingress, but rather schedules outgoing traffic on egress.
– QoS shaping: QoS stands for Quality of Service, which is a set of techniques that manage network resources and provide different levels of service to different types of traffic based on their requirements.
QoS shaping is a technique that delays or buffers outgoing traffic on an egress port to match the available bandwidth or rate limit. QoS shaping does not drop excessive broadcast traffic on ingress, but rather smooths outgoing traffic on egress.
– Strict queuing: Strict queuing is another queuing algorithm that assigns different priorities to different traffic classes or queues on an egress port. Strict queuing ensures that higher priority queues are always served before lower priority queues regardless of their bandwidth requirements or weights. Strict queuing does not drop excessive broadcast traffic on ingress, but rather schedules outgoing traffic on egress.
References:
https://en.wikipedia.org/wiki/Rate_limiting
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/qos/storm- control.htm
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/qos/dwrr.htm
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/qos/shaping.htm
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/qos/strict.htm

The main characteristic of the 6 GHz band that is true among the given options is that in North America, the 6 GHz band offers more 80 MHz channels than there are 40 MHz channels in the 5 GHz band. This characteristic provides more spectrum availability, less interference, and higher throughput for wireless devices that support Wi-Fi 6E Wi-Fi Enhanced (Wi-Fi 6E) is an extension of Wi-Fi 6 (802.11ax) standard that operates in the newly available unlicensed frequency spectrum around 6 GHz in addition to existing bands below it. Some facts about this characteristic are:
In North America, there are up to seven non-overlapping channels available in each of three channel widths (20 MHz, 40 MHz, and 80 MHz) in the entire unlicensed portion of the new spectrum (5925-7125 MHz). This means there are up to 21 non-overlapping channels available for Wi-Fi devices in total.
In comparison, in North America, there are only nine non-overlapping channels available in each of two channel widths (20 MHz and 40 MHz) in the entire unlicensed portion of the existing spectrum below it (2400-2483 MHz and 5150-5825 MHz). This means there are only up to nine non-overlapping channels available for Wi-Fi devices in total.
Therefore, in North America, there are more than twice as many non-overlapping channels available in each channel width in the new spectrum than in the existing spectrum below it.
Specifically, there are more than twice as many non-overlapping channels available at 80 MHz width (seven) than at 40 MHz width (three) in the existing spectrum below it.
The other options are not true because:
Less RF signal is absorbed by objects in a 6 GHz WLAN: This option is false because higher frequency signals tend to be more absorbed by objects than lower frequency signals due to higher attenuation Attenuation is a general term that refers to any reduction in signal strength during transmission over distance or through an object or medium . Therefore, RF signals in a 6 GHz WLAN would be more absorbed by objects than RF signals in a lower frequency WLAN.
The 6 GHz band is fully backward compatible with existing bands: This option is false because Wi-Fi devices need to support Wi-Fi 6E standard to operate in the new spectrum around 6 GHz . Existing Wi-Fi devices that do not support Wi-Fi 6E standard cannot use this spectrum and can only operate in existing bands below it.
Low Power Devices are allowed for indoor and outdoor usage: This option is false because Low Power Indoor Devices (LPI) are only allowed for indoor usage under certain power limits and registration requirements . Outdoor usage of LPI devices is prohibited by regulatory authorities such as FCC Federal Communications Commission (FCC) is an independent agency of United States government that regulates communications by radio, television, wire, satellite, and cable across United States . However, outdoor usage of Very Low Power Devices (VLP) may be allowed under certain power limits and without registration requirements.

Only: Daisy chain plus MAD and ring are the recommended VSF topologies for Aruba switches. They provide high availability and redundancy for the VSF stack. MAD (Multiple Active Detection) is a mechanism to detect and resolve split-brain scenarios in a VSF stack.
References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6790/GUID- D6EF042E-EE

While both 5 GHz and 6 GHz channels can provide similar throughputs, the higher frequency of the 6 GHz band means its signals have a shorter range and are more attenuated by obstaclescompared to 5 GHz signals.
This results in 5 GHz channels generally being able to travel longer distances than 6 GHz channels under similar conditions, although both can support high data rates for connected clients.

The option that allows you to access the switch and see the boot options available for OS images and ServiceOS is Conductor USB-C console port. This option provides direct access to ServiceOS, which is an operating system that runs on Aruba CX switches independently of AOS- CX Aruba Operating System CX (AOS-CX) is an operating system that runs on Aruba CX switches. ServiceOS provides low-level functions such as booting, firmware upgrades, password recovery, hardware diagnostics, switch stacking, and system recovery.
ServiceOS can be accessed through one of two methods:
– Conductor USB-C console port: This method allows you to connect your PC or laptop to the USB-C console port on any member switch in a VSF stack using a USB-C cable. This method provides direct access to ServiceOS without requiring any configuration or authentication on AOS-CX.
– AOS-CX CLI: This method allows you to access ServiceOS through AOS-CX CLI using SSH or Telnet protocols. This method requires you to configure an IP address on AOS-CX and authenticate with your username and password.
To see the boot options available for OS images and ServiceOS, you need to access ServiceOS through Conductor USB-C console port and enter boot menu command at ServiceOS prompt.
The other options do not allow you to access the switch and see the boot options available for OS images and ServiceOS because:
– Member 2 RJ-45 console port: This option allows you to connect your PC or laptop to the RJ-45 console port on any member switch in a VSF stack using an RJ-45 cable. This option provides direct access to AOS-CX CLI, not ServiceOS.
– Member 2 switch mgmt port: This option allows you to connect your PC or laptop to the switch mgmt port on any member switch in a VSF stack using an Ethernet cable. This option provides indirect access to AOS-CX CLI through SSH or Telnet protocols, not ServiceOS.
– Conductor mgmt port using SSH: This option allows you to connect your PC or laptop to the mgmt port on any member switch in a VSF stack using an Ethernet cable. This option provides indirect access to AOS-CX CLI through SSH protocol, not ServiceOS.

When a network technician encounters an issue where a new SSID does not allow internet access despite successful connectivity and DNS resolution, they should verify the firewall policies associated with the new SSID. The firewall policies must include rules that permit traffic to and from the internet and should be correctly ordered to ensure that they are applied as intended.
Since the existing SSID functions correctly, comparing the firewall rules between the two can be a useful method of troubleshooting.

Explanation

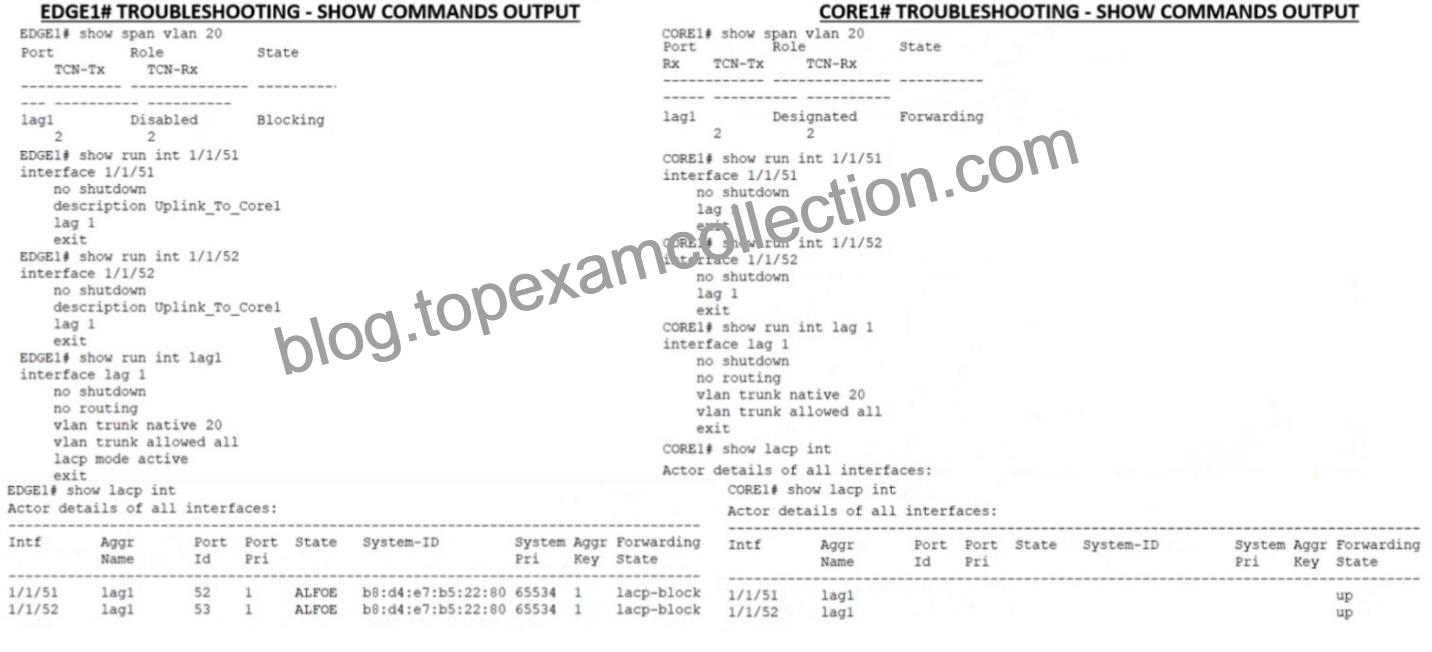

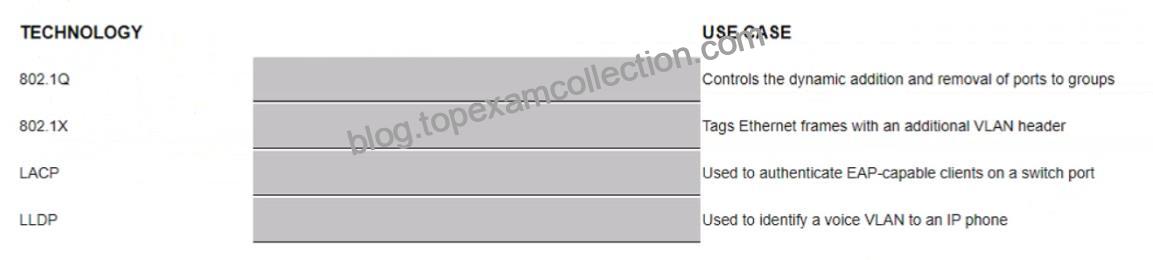

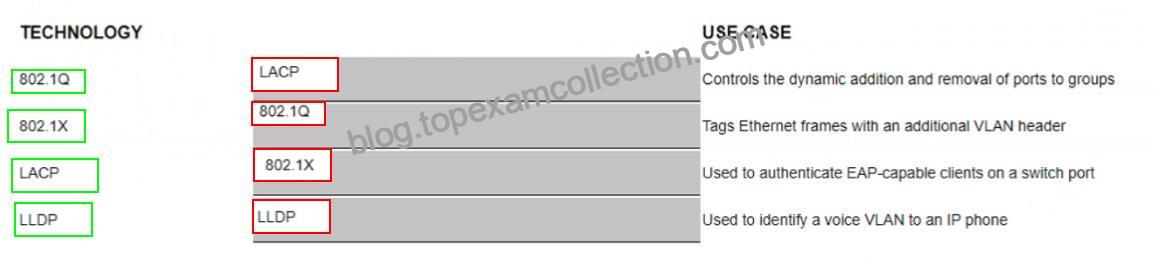

LACP is a protocol that allows multiple physical links to be aggregated into a single logical link for increased bandwidth and redundancy. LACP must be configured on both ends of the link for it to work properly. In this case, EDGE1 has LACP configured on its uplink port-channel 1, but CORE1 does not have LACP configured on its corresponding port-channel 1. This causes a mismatch and prevents the link from coming up.
References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-ove

Multiple Pre-Shared Key (MPSK) is a feature that allows device-specific or group-specific passphrases to securely add headless devices to the WLAN Wireless Local Area Network. WLAN is a wireless computer network that links two or more devices using wireless communication to form a local area network (LAN) within a limited area such as a home, school, computer laboratory, campus, or office building.. MPSK enhances the WPA2 PSK Wi-Fi Protected Access 2 Pre-Shared Key. WPA2 PSK is a method of securing your network using WPA2 with the use of the optional Pre-Shared Key (PSK) authentication, which was designed for home users without an enterprise authentication server. mode by allowing different PSKs for different devices on the same SSID Service Set Identifier. SSID is a case-sensitive, 32 alphanumeric character unique identifier attached to the header of packets sent over a wireless local-area network (WLAN). The SSID acts as a password when a mobile device tries to connect to the basic service set (BSS) — a component of the IEEE 802.11 WLAN architecture.. MPSK passwords can be generated or user-created and are managed by ClearPass Policy Manager.

A /30 subnet contains 4 addresses: the network address, two usable host addresses, and the broadcast address.
For the 10.0.1.0/30 subnet:
Network address: 10.0.1.0
Usable hosts: 10.0.1.1 and 10.0.1.2
Broadcast address: 10.0.1.3

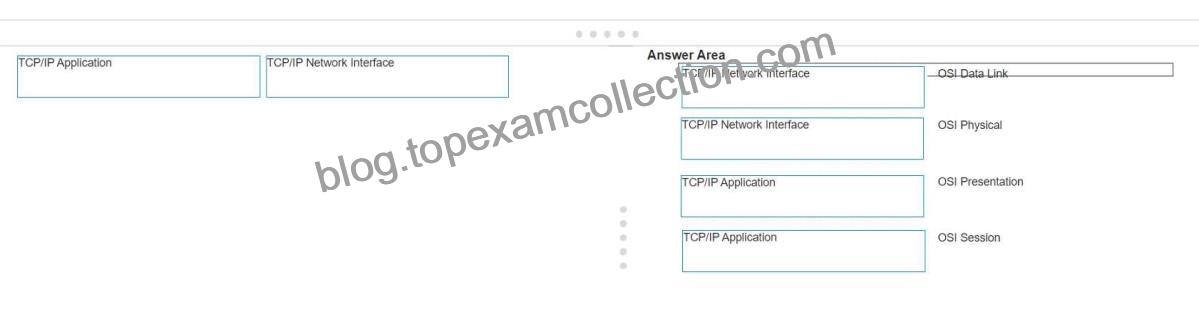

Explanation
Aruba Central allows you to create device configuration groups that define common settings for devices within each group. You can create different types of groupsdepending on your network requirements and management preferences. Two types of groups that you can define in Aruba Central during group creation are:
Template group: A template group allows you to create configuration templates using variables and expressions that can be applied to multiple devices or device groups. Template groups provide flexibility and scalability for managing large-scale deployments with similar configurations.
Default group: A default group is automatically created when you add devices to Aruba Central for the first time. The default group contains basic configuration settings that are applied to all devices that are not assigned to any other group. You can modify or delete the default group as needed.
References: https://www.arubanetworks.com/techdocs/Central/latest/content/nms/device-groups.htm
https://www.arubanetworks.com/techdocs/Central/latest/content/nms/template-groups.htm
https://www.arubanetworks.com/techdocs/Central/latest/content/nms/default-group.htm

A 20 MHz channel concentrates the transmitted energy into a narrower bandwidth, resulting in a higher signal-to-noise ratio than a 40 MHz channel. However, because a 40 MHz channel provides twice the channel width, it can support higher single-client data rates when conditions permit. Therefore, 20 MHz channels generally offer lower single-client connection speeds.

OAlOps is a feature of Aruba Central that uses artificial intelligence and machine learning to identify recommended steps to resolve network health issues and allows you to share detailed information with support personnel. OAlOps provides insights into network performance, root cause analysis, anomaly detection, proactive alerts, and automated remediation actions. OAlOps also integrates with Aruba User Experience Insight (UXI) sensors to measure and improve user experience across wired and wireless networks.
References: https://www.arubanetworks.com/assets/ds/DS_ArubaCentral.pdf

ClientMatch is an Aruba patented technology that helps to move sticky clients-clients that stay connected to an AP even when there are better APs available-to a more appropriate AP. This technology ensures that clients are always connected to the best available AP, optimizing both the client’s performance and the overall performance of the wireless network.

Layer 2 MAC authentication is a method of authenticating devices based on their MAC addresses without requiring any client-side configuration or credentials. The switch sends the MAC address of the device to an authentication server such as ClearPass or RADIUS, which checks if the MAC address is authorized to access the network. If yes, the switch grants access to the device based on the assigned role and policies. If no, the switch denies access or redirects the device to a captive portal for further authentication.

AirMatch is a feature that provides centralized RF planning and optimization service for Aruba wireless networks. It uses cloud-based algorithms and machine learning to optimize the RF performance and user experience.
References: https://www.arubanetworks.com/assets/ds/DS_AirMatch.pdf

Explanation
The command that is used to set a default route to 10.4.5.1 on an Aruba CX switch when in-band management using an SVI is being used is ip route 0.0 0 0/0 10.4.5.1 . This command specifies the destination network address (0.0 0 0) and prefix length (/0) and the next-hop address (10.4.5.1) for reaching any network that is not directly connected to the switch. The default route applies to the default VRF Virtual Routing and Forwarding.
VRF is a technology that allows multiple instances of a routing table to co-exist within the same router at the same time. VRFs are typically used to segment network traffic for security, privacy, or administrative purposes. , which is used for in-band management traffic that goes through an SVI Switch Virtual Interface.
SVI is a virtual interface on a switch that allows the switch to route packets between different VLANs on the same switch or different switches that are connected by a trunk link. An SVI is associated with a VLAN and has an IP address and subnet mask assigned to it
https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Ch
2
https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Ch

The reason why you would configure OSPF Open Shortest Path First (OSPF) is a link-state routing protocol that dynamically calculates the best routes for data transmission within an IP network. OSPF uses a hierarchical structure that divides a network into areas and assigns each router an identifier called router ID (RID). OSPF uses hello packets to discover neighbors and exchange routing information. OSPF uses Dijkstra’ s algorithm to compute the shortest path tree (SPT) based on link costs and build a routing table based on SPT. OSPF supports multiple equal-cost paths, load balancing, authentication, and various network types such as broadcast, point-to-point, point-to-multipoint, non-broadcast multi-access (NBMA), etc. OSPF is defined in RFC 2328 for IPv4 and RFC 5340 for IPv6. to use the IP address IP address Internet Protocol (IP) address is a numerical label assigned to each device connected to a computer network that uses the Internet Protocol for communication. An IP address serves two main functions: host or network interface identification and location addressing. There are two versions of IP addresses: IPv4 and IPv6. IPv4 addresses are 32 bits long and written in dotted-decimal notation, such as 192.168.1.1. IPv6 addresses are 128 bits long and written in hexadecimal notation, such as 2001:db8::1. IP addresses can be either static (fixed) or dynamic (assigned by a DHCP server). 10.1.200.1 as the router ID Router ID (RID) Router ID (RID) is a unique identifier assigned to each router in a routing domain or protocol. RIDs are used by routing protocols such as OSPF, IS-IS, EIGRP, BGP, etc., to identify neighbors, exchange routing information, elect designated routers (DRs), etc. RIDs are usually derived from one of the IP addresses configured on the router’s interfaces or loopbacks, or manually specified by network administrators. RIDs must be unique within a routing domain or protocol instance. is that the loopback interface state Loopback interface Loopback interface is a virtual interface on a router that does notcorrespond to any physical port or connection. Loopback interfaces are used for various purposes such as testing network connectivity, providing stable router IDs for routing protocols, providing management access to routers, etc. Loopback interfaces have some advantages over physical interfaces such as being always up unless administratively shut down, being independent of any hardware failures or link failures, being able to assign any IP address regardless of subnetting constraints, etc. Loopback interfaces are usually numbered from zero (e.g., loopback0) upwards on routers. Loopback interfaces can also be created on PCs or servers for testing or configuration purposes using special IP addresses reserved for loopback testing (e.g.,
127.x.x.x for IPv4 or ::1 for IPv6). Loopback interfaces are also known as virtual interfaces or dummy interfaces . Loopback interface state Loopback interface state refers to whether a loopback interface is up or down on a router . A loopback interface state can be either administratively controlled (by using commands such as no shutdown or shutdown ) or automatically determined by routing protocols (by using commands such as passive-interface or ip ospf network point-to-point ). A loopback interface state affects how routing protocols use the IP address assigned to the loopback interface for neighbor discovery , router ID selection , route advertisement , etc . A loopback interface state can also affect how other devices can access or ping the loopback interface . A loopback interface state can be checked by using commands such as show ip interface brief or show ip ospf neighbor . is independent of any physical interface and reduces routing updates.
The loopback interface state is independent of any physical interface because it does not depend on any hardware or link status. This means that the loopback interface state will always be up unless it is manually shut down by an administrator. This also means that the loopback interface state will not change due to any physical failures or link failures that may affect other interfaces on the router.
The loopback interface state reduces routing updates because it provides a stable router ID for OSPF that does not change due to any physical failures or link failures that may affect other interfaces on the router. This means that OSPF will not have to re-elect DRs Designated Routers (DRs) Designated Routers (DRs) are routers that are elected by OSPF routers in a broadcast or non-broadcast multi-access (NBMA) network to act as leaders and coordinators of OSPF operations in that network. DRs are responsible for generating link-state advertisements (LSAs) for the entire network segment, maintaining adjacencies with all other routers in the segment, and exchanging routing information with other DRs in different segments through backup designated routers (BDRs). DRs are elected based on their router priority values and router IDs . The highest priority router becomes the DR and the second highest priority router becomes the BDR . If there is a tie in priority values , then the highest router ID wins . DRs can be manually configured by setting the router priority value to 0 (which means ineligible) or 255 (which means always eligible) on specific interfaces . DRs can also be influenced by using commands such as ip ospf priority , ip ospf dr-delay , ip ospf network point-to- multipoint , etc . DRs can be verified by using commands such as show ip ospf neighbor , show ip ospf interface , show ip ospf database , etc . , recalculate SPT Shortest PathTree (SPT) Shortest Path Tree (SPT) is a data structure that represents the shortest paths from a source node to all other nodes in a graph or network .
SPT is used by link-state routing protocols such as OSPF and IS-IS to compute optimal routes based on link costs . SPT is built using Dijkstra’s algorithm , which starts from the source node and iteratively adds nodes with the lowest cost paths to the tree until all nodes are included . SPT can be represented by a set of pointers from each node to its parent node in the tree , or by a set of next-hop addresses from each node to its destination node in the network . SPT can be updated by adding or removing nodes or links , or by changing link costs . SPT can be verified by using commands such as show ip route , show ip ospf database , show clns route , show clns database , etc . , or send LSAs Link-State Advertisements (LSAs) Link-State Advertisements (LSAs) are packets that contain information about the state and cost of links in a network segment . LSAs are generated and flooded by link-state routing protocols such as OSPF and IS-IS to exchange routing information with other routers in the same area or level . LSAs are used to build link-state databases (LSDBs) on each router , which store the complete topology of the network segment . LSAs are also used to compute shortest path trees (SPTs) on each router , which determine the optimal routes to all destinations in the network . LSAs have different types depending on their origin and scope , such as router LSAs , network LSAs , summary LSAs , external LSAs , etc . LSAs have different formats depending on their type and protocol version , but they usually contain fields such as LSA header , LSA type , LSA length , LSA age , LSA sequence number , LSA checksum , LSA body , etc . LSAs can be verified by using commands such as show ip ospf database , show clns database , debug ip ospf hello , debug clns hello , etc . due to changes in router IDs.
The other options are not reasons because:
* The IP address associated with the loopback interface is non-routable and prevents loops: This option is false because the IP address associated with the loopback interface is routable and does not prevent loops. The IP address associated with the loopback interface can be any valid IP address that belongs to an existing subnet or a new subnet created specifically for loopbacks. The IP address associated with the loopback interface does not prevent loops because loops are caused by misconfigurations or failures in routing protocols or devices, not by IP addresses.
* The loopback interface state is dependent on the management interface state and reduces routing updates: This option is false because the loopback interface state is independent of any physical interface state, including the management interface state Management interface Management interface is an interface on a device that provides access to management functions such as configuration, monitoring, troubleshooting, etc . Management interfaces can be physical ports such as console ports, Ethernet ports, USB ports, etc., or virtual ports such as Telnet sessions, SSH sessions, web sessions, etc . Management interfaces can use different protocols such as CLI Command- Line Interface (CLI) Command-Line Interface (CLI) is an interactive text-based user interface that allows users to communicate with devices using commands typed on a keyboard . CLI is one of the methods for accessingmanagement functions on devices such as routers, switches, firewalls, servers, etc . CLI can use different protocols such as console port serial communication protocol Serial communication protocol Serial communication protocol is a method of transmitting data between devices using serial ports and cables . Serial communication protocol uses binary signals that represent bits (0s and 1s) and sends them one after another over a single wire . Serial communication protocol has advantages such as simplicity, low cost, long

While both 5 GHz and 6 GHz channels can provide similar throughputs, the higher frequency of the 6 GHz band means its signals have a shorter range and are more attenuated by obstacles compared to 5 GHz signals. This results in 5 GHz channels generally being able to travel longer distances than 6 GHz channels under similar conditions, although both can support high data rates for connected clients.

For an Aruba switch to receive LLDP messages on a specific port, LLDP must be enabled on that port.
The default configuration for Aruba switches typically has LLDP enabled on all ports, so in most cases, no additional configuration is required.

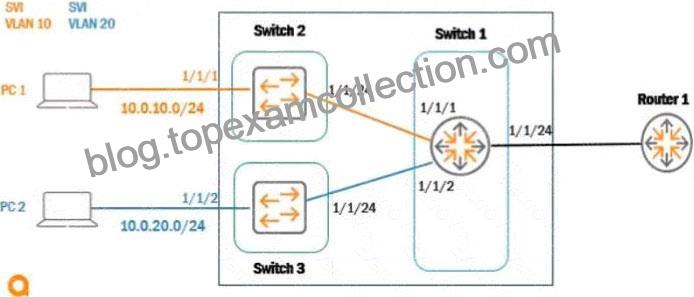

This means that if Router 1 is sending LLDP messages, Switch 1 port 1/1/24 should receive them without additional configuration, as long as LLDP has not been disabled on that port. If LLDP were disabled on the switch or on the specific port, you would then need to enable it, which could be similar to option C (with correct Aruba OS syntax), as option B suggests a global configuration command which is not typically how LLDP is enabled on Aruba switches. Option D is related to Cisco Discovery Protocol (CDP), which is not relevant to LLDP operation.

dBm is calculated using the formula:
dBM = 10 log10(PmW)
Substituting 0.0000001 mW (10⁻⁷ mW):
dBm = 10 × log10(10⁻⁷) = 10 × (-7) = -70 dBm
Therefore, a signal strength of 0.0000001 milliwatts equals -70 dBm.
