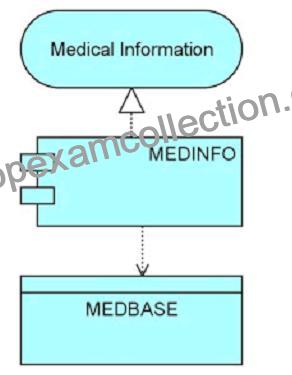

Based on the ArchiMate 3 documents or objectives, an application component represents a modular, deployable, and replaceable part of a software system that encapsulates its behavior and dat a. An application service represents an explicitly defined exposed application behavior. A data object represents data structured for automated processing. A realization relationship indicates that an entity plays a critical role in the creation, achievement, sustenance, or operation of a more abstract entity. An access relationship models the ability of behavior and active structure elements to observe or act upon passive structure elements. The diagram uses a realization relationship from the MEDINFO application component to the Medical Information service to indicate that the application component realizes the service. The diagram also uses an access relationship from the MEDINFO application component to the MEDBASE data object to indicate that the application component accesses the data object.

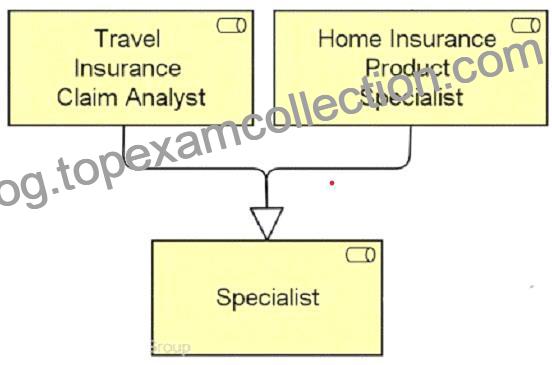

Based on the ArchiMate 3 documents or objectives, the diagram uses a specialization relationship to indicate that the two business roles Travel Insurance Claim Analyst and Home Insurance Product Specialist are more specific versions of the business role Specialist. A specialization relationship is a type of structural relationship that indicates that an object is a specialization of another object. The notation for a specialization relationship is a solid line with an empty triangle at the end that points to the more general element.
References: ArchiMate 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1; ArchiMate Specialization Relationship – ArchiMate Quick Guide – GitBook 2.

According to the ArchiMate 3.2 Specification1, the ArchiMate core language defines a structure of generic elements and their relationships, which can be specialized in different layers. Three layers are defined within the ArchiMate core language as follows:
The Business Layer depicts business services offered to customers, which are realized in the organization by business processes performed by business actors and roles.
The Application Layer depicts application services that support the business, and the applications that realize them.
The Technology Layer comprises both information and operational technology. You can model, for example, processing, storage, and communication technology in support of the application world and Business Layers, and model operational or physical technology with facilities, physical equipment, materials, and distribution networks.

According to the standard notation conventions, a structure element is denoted by a rectangle with rounded corners. A structure element represents an entity that has a state and exhibits some behavior. Examples of structure elements are actors, roles, components, nodes, and objects.

Comprehensive and Detailed In-Depth Explanation:

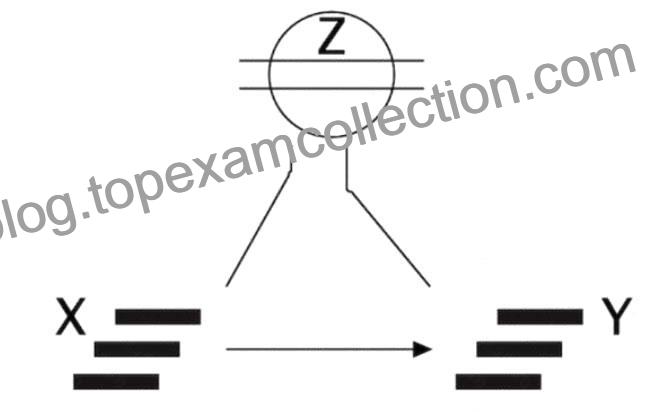

ThisArchiMate Implementation & Migration Layer diagramrepresentsan architecture evolution model, specifically showingtwo plateaus (X and Y) with a Gap (Z) in between them.
* Plateausin ArchiMate representstates of an enterprise architectureat different points in time.
* Gapsrepresentthe difference or missing elements between two architectural states, indicating what needs to change.
* Thecircle with lines (Z) represents a Gap, which identifies what is missing or needs to be addressed when transitioning from Plateau X to Plateau Y.
Analysis of Answer Choices:
#A. Two plateaus (X and Y) with a transition architecture (Z).##Incorrect
* A transition architecture is different from a gap.
* ATransition Architecture provides an intermediate step between two plateaus, whereasthis diagram is identifying a Gapbetween them.
* ArchiMate 3.2 Specification, Section 7.4.3, definesGaps as structural differences, not transition states.
#B. A gap (Z) associated with two plateaus (X and Y).##Correct Answer
* The circle with lines (Z) is the correct representation of a Gap in ArchiMate.
* Plateau X represents the “Before” state, andPlateau Y represents the “Target” state.
* Z (Gap) represents what is missing or what must be addressed to move from X to Y.
* ArchiMate 3.2 Specification, Section 7.4.3, states thatGaps are used in architecture migration to analyze missing capabilities or elements.
#C. A deliverable (Z) exchanged between two projects (X and Y).##Incorrect
* A deliverable is typically represented as a document or artifactin ArchiMate, not as a Gap.
* Z represents a missing element between states, not an exchanged deliverable.
#D. Two nodes (X and Y) connected by a communication path (Z).##Incorrect
* Nodes and Communication Paths belong to the Technology Layer, but this diagram represents the Implementation & Migration Layer.
* X and Y are plateaus, not technology nodes.
#B. A gap (Z) associated with two plateaus (X and Y).
참조:
* ArchiMate 3.2 Specification: Sections 7.4.1 (Plateau) and 7.4.3 (Gap).
* Archi User Guide: Modeling architecture migration using Gaps and Plateaus.

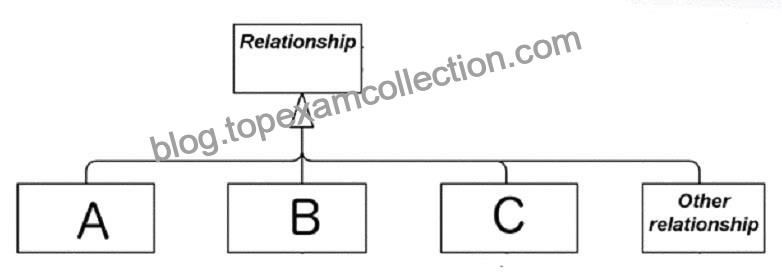

This is because the diagram shows the three main categories of relationships in ArchiMate: structural relationships, which model the static construction or composition of concepts; dependency relationships, which model how elements depend on or use other elements; and dynamic relationships, which model the temporal or causal connections between elements.

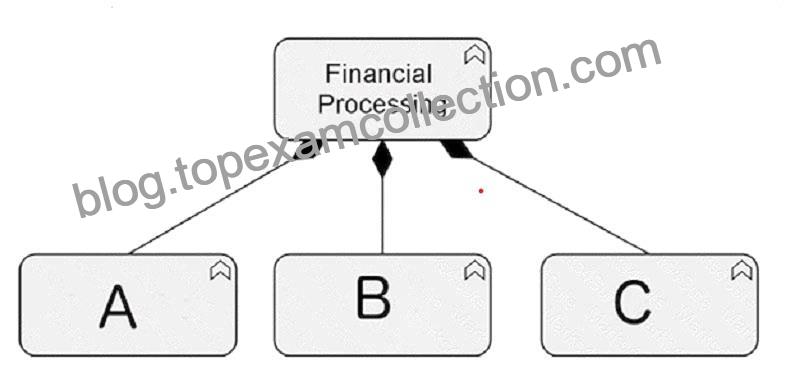

Based on the ArchiMate 3 documents or objectives, the diagram uses a composition relationship to indicate that the financial processing function consists of three sub-functions A, B, and C. A composition relationship is a type of structural relationship that represents a whole-part hierarchy between elements. The notation for a composition relationship is a solid line with a filled diamond at the end that points to the whole element.
References: ArchiMate 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1.

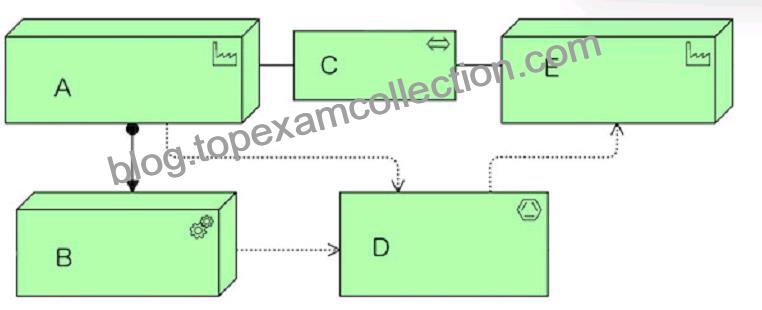

According to the Technology Layer metamodel, a communication network is a physical communication medium between two or more devices or other networks. A communication network realizes a path, which is a relation between two or more nodes through which they can exchange information.

The diagram uses the ArchiMate notation for physical elements, which are used to model physical concepts like machines, physical installations, materials, and distribution networks. A is an equipment element, which represents a physical machine, tool, or instrument that can create, use, store, move, or transform materials. B is a material element, which represents tangible physical matter or energy. C is a distribution network element, which represents a physical network used to transport materials or energy.

Based on the ArchiMate 3 documents or objectives, the ArchiMate standard provides a set of entities and relationships for representing Architecture Description. Architecture Description is a work product used to express an architecture for a system-of-interest. The ArchiMate language is an open and independent modeling language for Enterprise Architecture that is supported by different tool vendors and consulting firms.

Comprehensive and Detailed in Depth Explanation:AnInterfacein ArchiMate representsan access point through which elements interact with services. It can be aBusiness Interface, Application Interface, or Technology Interface.
Interfaces serve as aboundarybetween internal and external systems, allowing controlled interactions. The ArchiMate 3.2 Specificationexplicitly states thatinterfaces expose services to the environment.
참조:
* Archi User Guide
* ArchiMate 3.2 Specification

This is because the diagram shows the three main categories of relationships in ArchiMate: structural relationships, which model the static construction or composition of concepts; dependency relationships, which model how elements depend on or use other elements; and dynamic relationships, which model the temporal or causal connections between elements.

According to the physical elements metamodel, a facility is a specialization of a node, which is an active structure element that represents a computational or physical resource that hosts, manipulates, or interacts with other computational or physical resources. A facility can be used to model physical buildings or locations.
References: Physical Layer: Part 1 – Metamodel1; ArchiMate 3.0.1 Specification, Chapter 9: Physical Elements2.

Comprehensive and Detailed In-Depth Explanation:

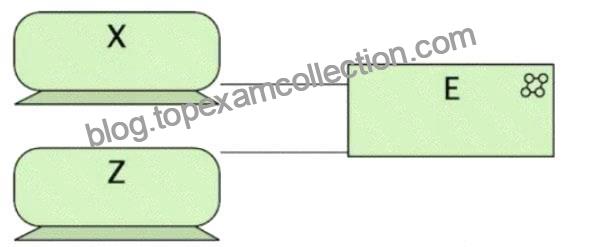

This diagram represents aTechnology Layer modelin ArchiMate, whereX and Z are servers, andE is a shared technology component.
* X and Z are likely hardware devices (Servers), which are typically represented as Technology Nodes or Devices in ArchiMate.
* E is a shared resource that both servers connect to, implying a common storage or network area storage device.
According toArchiMate 3.2,Technology Objects like Storage Devices or Infrastructure Services can be shared across multiple devices.
Analysis of Answer Choices:
#A. The servers, represented by devices, are connected by a communication network.##Incorrect
* There isno explicit network symbol(e.g., a communication path or a network node).
* Therelationship between X, Z, and E indicates a shared resource rather than a network connection.
* ArchiMate 3.2 Specification, Section 6.6.4, definesCommunication Networksseparately, and none are present here.
#B. The servers are shown in the technology interaction E, where they collectively process data.
##Incorrect
* Technology Interaction represents behaviorin ArchiMate, meaning two or more active elements are collaborating on a process.
* E is a shared object, not an interaction process.
#C. The servers share a common network area storage device E.##Correct Answer
* E is a shared resource, meaningit is likely a storage device used by both servers.
* ArchiMate 3.2 Specification, Section 6.6.2, states thatTechnology Objects can represent storage elementsused by multiple devices.
* Thismatches the pattern of a shared Network Attached Storage (NAS) or Storage Area Network (SAN).
#D. Technology collaboration E represents a point of access for services offered by the servers.
##Incorrect
* Technology Collaboration elementsrepresentactive behavior, not astatic resourcelike a shared storage system.
* E does not behave as a collaboration element but as a shared infrastructure object.
#C. The servers share a common network area storage device E.
참조:
* ArchiMate 3.2 Specification: Sections 6.6.2 (Technology Object), 6.6.4 (Communication Network), and 6.6.7 (Technology Collaboration).
* Archi User Guide: Understanding shared technology infrastructure and storage modeling.

Comprehensive and Detailed in Depth Explanation:AnApplication Componentis anactive structurethat representssoftware components performing behavior. Itspassive counterpartis theData Object, which representsstructured information used or produced by applications.
SinceData Objectsdo not perform actions themselves but store, structure, or represent data, they are the correct counterpart toApplication Componentsin theApplication Layer.
This is clearly outlined in theArchiMate 3.2 Specification, which states thatApplication Components act upon Data Objects.
참조:
* Archi User Guide
* ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:
ThisArchiMate Technology Layer diagramrepresents asoftware application architecturewhere different application components interact with data objects.
* “Online Claims” is an application component that interacts with “Loss Claim”.
* “Loss Claim” is another application component, likely acting as a back-end systemthat processes claims.
* “Customer Record” is a data object that “Loss Claim” accessesto retrieve or store customer-related information.
* TheOnline Claims system does not directly access the Customer Record, but insteadrelies on the Loss Claim system to fetch the required data.
Analysis of Answer Choices:
#A. The Loss Claim application serves the Online Claims department and accesses a data object called Customer Record.##Incorrect
* There is no indication that “Online Claims” represents a department; it is an application component.
* Thediagram focuses on software components, not organizational units.
#B. The Online Claims application uses a back-end module called Loss Claim to access a data object called Customer Record.##Correct Answer
* The Online Claims system depends on the Loss Claim system, which in turn accesses the Customer Record.
* Thismatches the typical structure of a front-end application relying on a back-end module.
* ArchiMate 3.2 Specification, Section 7.3, states thatapplication components can interact hierarchically, where a front-end application calls a back-end service to process data.
#C. The Loss Claim application realizes the Online Claims service and accesses a Customer Record data object.##Incorrect
* “Realization” means the Loss Claim application would be implementing a service provided by Online Claims.
* In the diagram,Online Claims and Loss Claim are separate application components, andLoss Claim is not a realization of an Online Claims service.
#D. The Customer Record application uses Loss Claim middleware to present the Online Claims user interface.##Incorrect
* The Customer Record is a data object, not an application.
* Loss Claim is not middleware; it is a back-end application component.
* Thediagram does not indicate that Loss Claim is responsible for presenting a user interfac
#B. The Online Claims application uses a back-end module called Loss Claim to access a data object called Customer Record.
참조:
* ArchiMate 3.2 Specification: Sections 7.3 (Application Components), 7.5 (Data Objects), and 7.6 (Application Services).
* Archi User Guide: Modeling front-end and back-end application interactions.

Comprehensive and Detailed in Depth Explanation:AnApplication Interfacein ArchiMate represents a point of accesswhere anApplication Serviceisexposed to users or other applications.
Application Interfaces define howusers or other software components interactwith anApplication Service.
This is clearly defined in theArchiMate 3.2 Specification, which states that anApplication Interface provides access to an Application Service.
참조:
* Archi User Guide
* ArchiMate 3.2 Specification
